Sorry - this product is no longer available

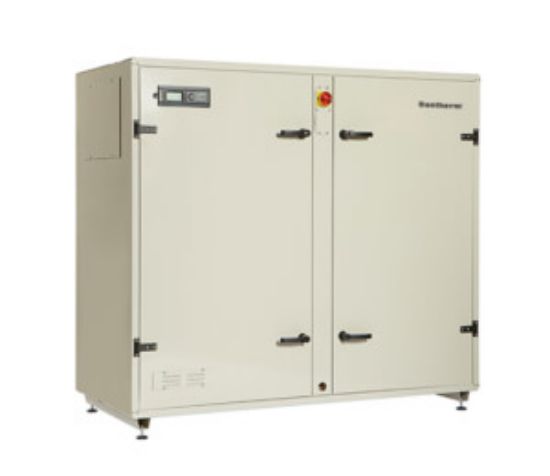

DanX 1-2-3 XD – swimming pool air handling units

SKU: DanX 1-2-3 XD
Enquire Now Brochure not available

Overview

The DanX XD is a very effective ventilation system that uses outdoor air to provide dehumidification using a double heat exchanger that delivers up to a 95% heat recovery. This reduces energy consumption and total operating costs. Making the unit perfect for managing humidity and temperature in the pool room.

Key features

  • Built-in user friendly control system for high-quality demand management. Automatic monitoring and control of pool hall temperature and humidity. The custom-built software runs the unit as efficiently as possible under different conditions.
  • Double crossflow heat exchangers with a high efficiency of more than 85% and a low pressure drop.
  • Built-in bypass for free cooling in summertime.
  • Highly energy-efficient EC plug fans.
  • Efficient M5/ePM10 70% and F7/ePM1 55% compact filters with low pressure drop.
  • Self-bearing cabinet with hot-dip galvanised, powder-painted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet.
  • Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchanger, heating coil with aluminium frame, pre-painted fins and epoxy coating to protect all fasteners, bolts, nuts.
  • Two large inspection doors with strong hinges and tongue locks and handles for easy access for service.
  • All-in-one box solutions for easy and quick installation – all sensors and electrical components pre-connected.
  • BMS communication with either Modbus or BACnet.

DanX XD with double cross flow heat exchanger

The DanX XD is a very effective ventilation system that uses outdoor air to provide dehumidification using a double heat exchanger that delivers up to a 95% heat recovery. This reduces energy consumption and total operating costs. Making the unit perfect for managing humidity and temperature in the pool room.

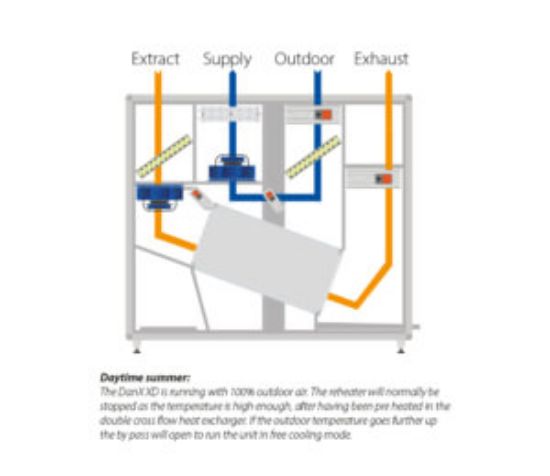

The built-in mixing function takes care not to add any more outdoor air than necessary to provide a comfortable indoor climate. Free cooling is also an option during summer, when the unit can add up to 100% outdoor air into the pool area through a by-pass.

The unit's compact, integrated design enables optimal installation in the technical room. Convenient top or side connections ensure easy access to ducts.
