Sorry - this product is no longer available

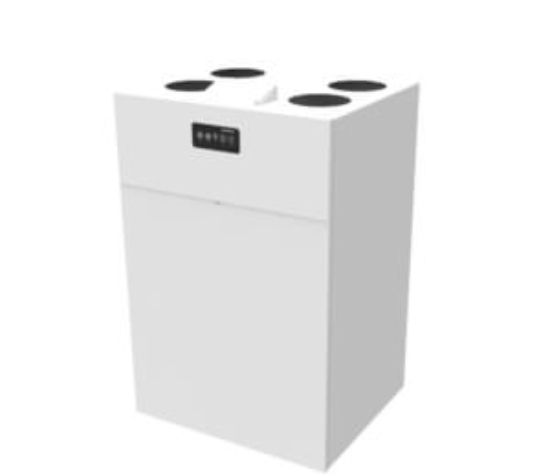

HCV 500 – residential ventilation unit

SKU: HCV 500
Enquire Now Brochure not available

Overview

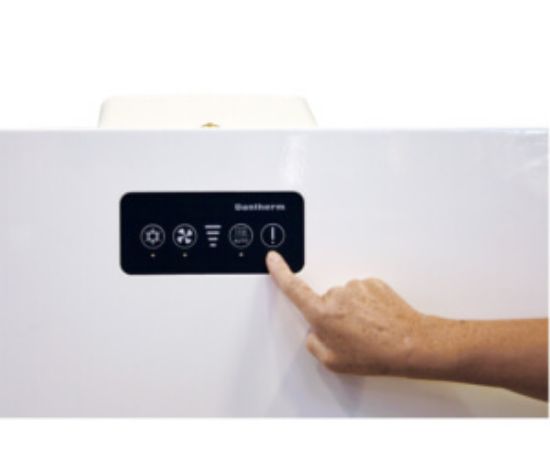

The HCV 500 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m2 or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and are delivered with all parts necessary for wall installation. The HCV 500 is ideal for free wall installation with minimum 700mm space. A standard wall rail is supplied with all units.

Key features

  • Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
  • Summer mode in which supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
  • Fireplace mode, creating a temporary inside overpressure to enhance chimney functionality
  • High-efficiency heat recovery
  • EC fan motors with extremely low energy consumption (low SPI)

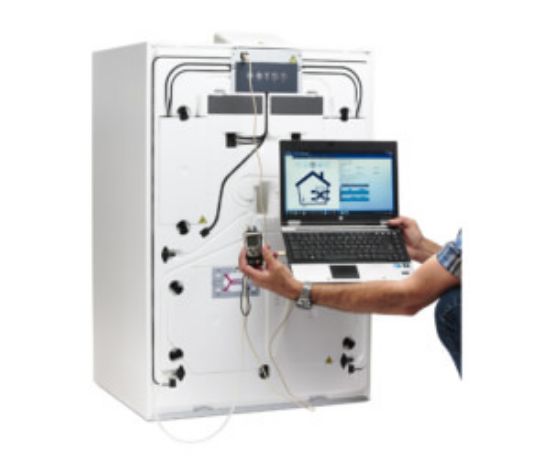

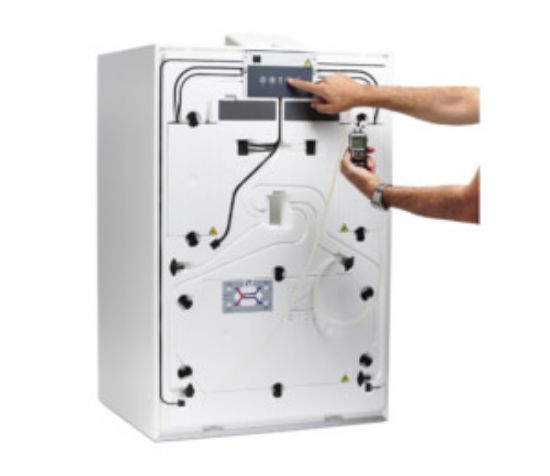

  • Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
  • Highly customizable units, with option a high variety of internal as well as external accessories
  • A standard wall rail is supplied with the unit

Suitable for



Products specifications

Attribute nameAttribute value
System unit
Operating range (minimum @50Pa – maximum @100Pa) (V | m³/h)80 to 300
EN 13141-7 reference flow at 50Pa(VREF | m³/h)210
Thermal efficiency in accordance with EN13141-7(ηSUP | %)85 to 88
Specific power consumption in accordance with EN13141-7(SEL/SYI | m³/h)0.21
Leakage (external and internal) according to EN 13141-7(class)<2% (Class A1)

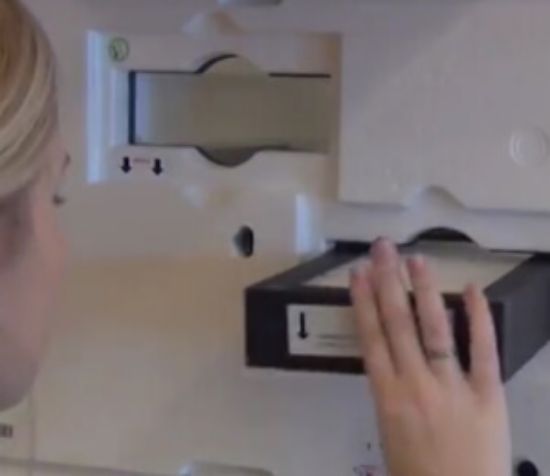

Filters in accordance with ISO16890ISO Coarse 75% (optional optional on supply: ePM1>50% )
Filters in accordance with EN779G4 (optional on supply: F7)
Installation ambient temperature(tSURR | °C)+12 to +50
Outdoor temperature range without preheating installed(tODA | °C)-12 to +50
Outdoor temperature range with preheating installed(tODA | °C)-20 to +50
Maximum absolute humidity in extract air(x | g/kg)10
Spigots/duct connections(Ømm)160 – female
Weight(kg)49.5
Thermal conductivity – polystyrene insulation(λ | W/mK)0.031
Heat transition figures – polystyrene insulation(U | W/m²K)<1
Fire classification of the polystyrene insulation(class)DIN 4102-1 class B2 EN 13501 class E
Drainage hose included(Ø/length | "/m)¾/1
Cabinet colour(RAL)9016
Voltage(U | V)230
Maximum power consumption without/with preheater(P | W)170/1370
Frequency(f | Hz)50
Protection classIP21
