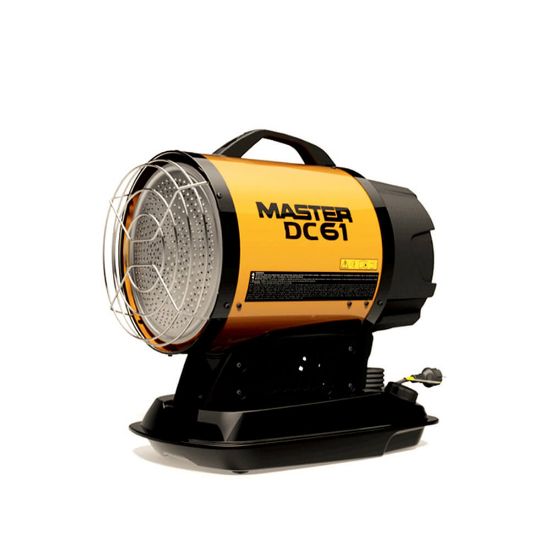

DC 61 – infrared oil fired heater

Direct oil fired heaters – low pressure
SKU: DC 61
Enquire Now Brochure not available

Overview

Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are ideal for open or well-ventilated areas like factories, warehouses or construction sites. Master direct heaters are known for their efficiency, robustness, ease of use and operational safety.

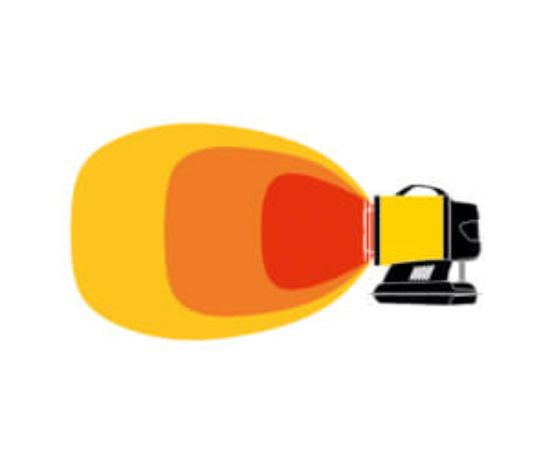

Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects (or walls) are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for:

  • Heating objects, bodies or walls indoors and outdoors.
  • Drying plaster walls. Infrared heat penetrates the wall and evaporates the humidity of the wall from inside. Unlike an air flow heater which creates a dry surface which traps humidity in the wall.
  • Heating objects or limited indoor spaces. Unlike other methods where the hot air is quickly dispersed in the room.
  • Saving energy, because less energy is required for achieving the same heating effect.

Key Features

  • Compatible with the mains (110-240 V)

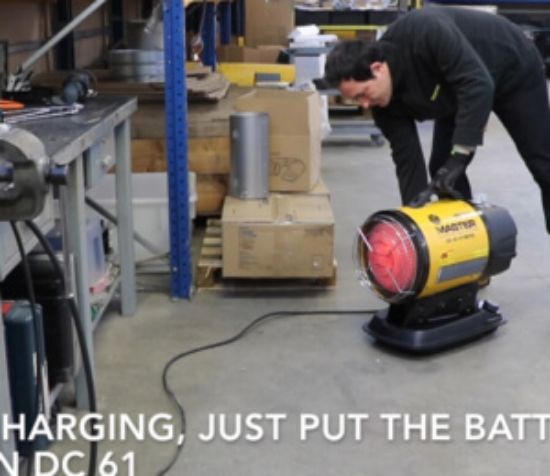

  • Can be used cordless with lithium battery (14 V)
  • 14 V only the highest electrical safety
  • Equipped with Master Lithium Battery BAT6
  • On board power adapter from 110 V to 220 V AC included
  • Low noise
  • Infrared heating (short wave)
  • No air flow
  • Electronic flame control with photocell
  • Post-ventilation
  • Standard oil level indicator
  • ILME socket for remote thermostat: analogue or digital

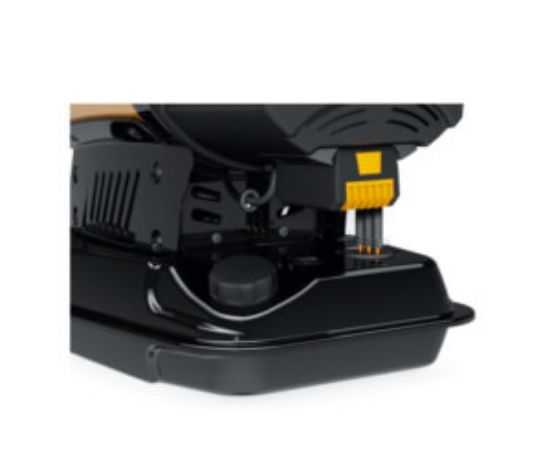

  • Suction filter and inlet filter
  • Snorkel
  • Overheat thermostat
  • Anti-tilt switch



Suitable for

  • Agriculture

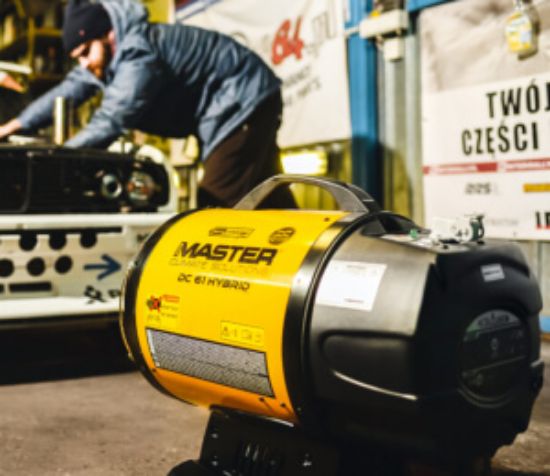

  • Automotive

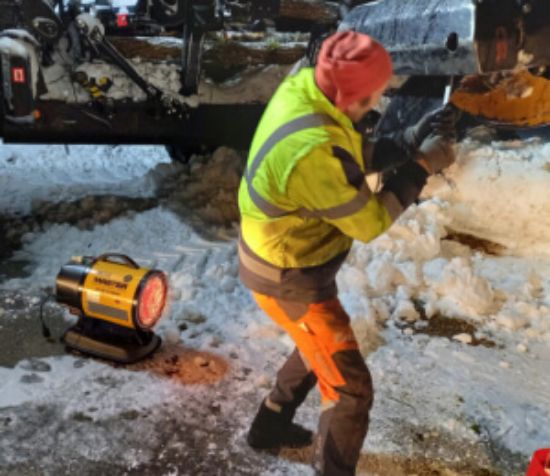

  • Construction
  • Emergency services
  • Events, festivals and temporary structures
  • General industry and production
  • Military and aerospace
  • Rental companies

Products specifications

Attribute nameAttribute value
System unit
Heating power (kW)17
Heating power(Btu/h)58000
Heating power(kcal/h)14,600
Thermostat controlAnalogue or digital
Fuel autonomy(h)7
Fuel consumption(l/h)1.6
Electric power (kW)0.2
Power supply(V/Hz)110-240/1ph/50
Rated current(A)1
Tank capacity(l)11
Product size( l x w x h)(mm)560 x 345 x 575
Box size (l x w x h)(mm)680 x 380 x 580
Net/gross weight(kg)19/21
Pallet(pcs)12

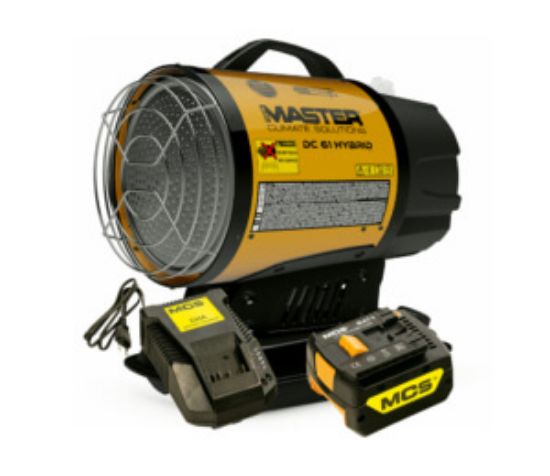

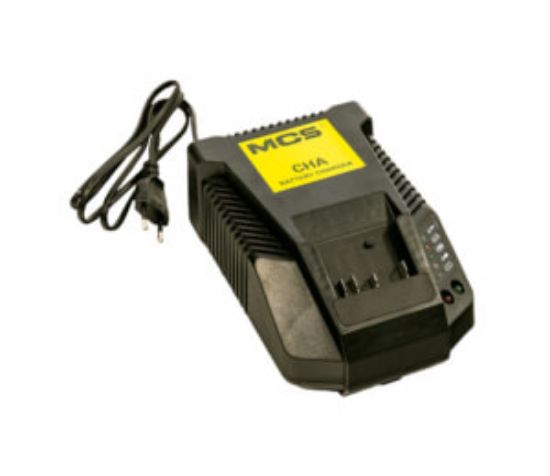

Included in the box6Ah lithium battery, battery pack charger, power cord
