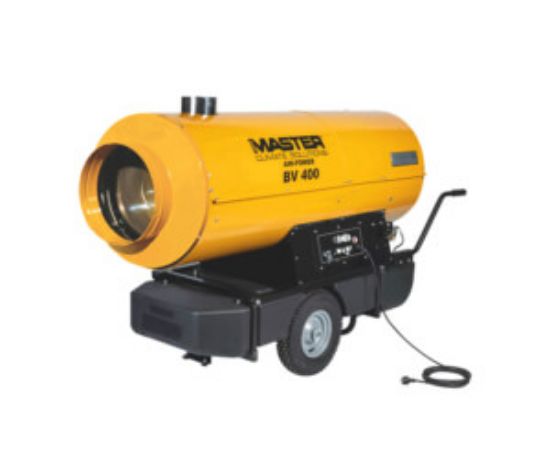

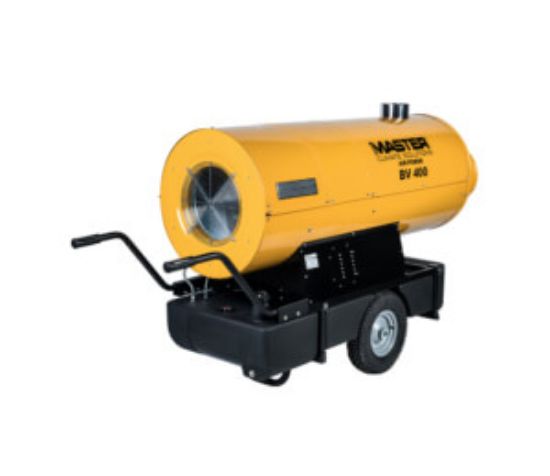

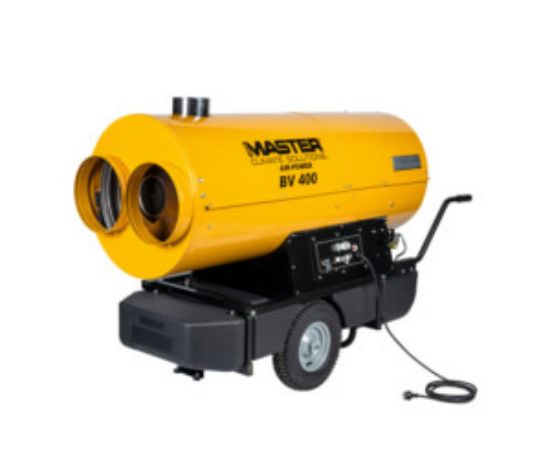

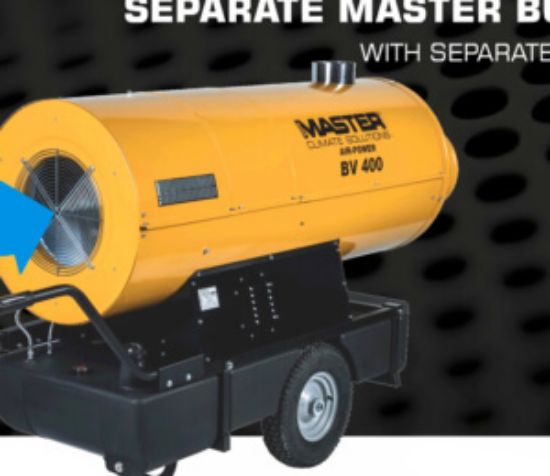

BV 400 – indirect oil fired air heater

Indirect oil fired air heaters with 2 stage Master burner

SKU: BV 400

Enquire Now Brochure not available

Overview

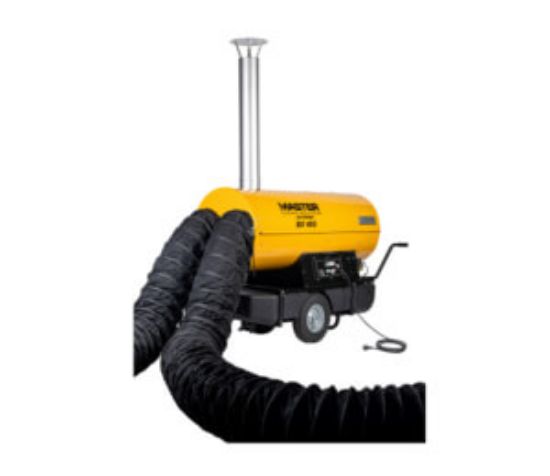

Master indirect oil heaters with a separate burner generate a large volume of 100% clean, dry and warm air. These heaters are equipped with a fuel tank and are very easy easy to move or transport. They have a seperate air inlet kit for combustion air supply which is very useful in polluted areas. In addition, can be used with one or two flex tubes to spread the warm air.

Key features

Clean hot air
Very low noise (72 dB)

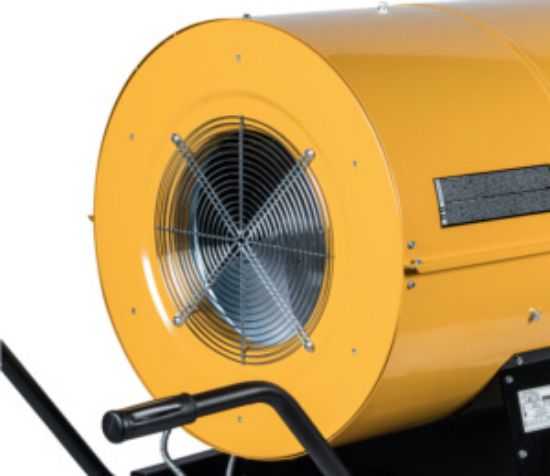

Plug fan allows high air pressure 500 Pa
2-stage Master burner
Air feed kit
Rotomoulded tank

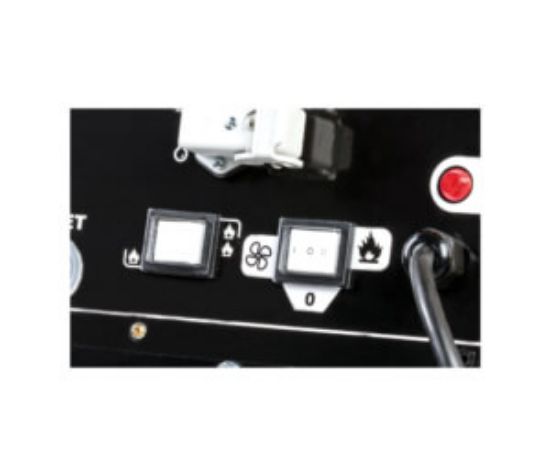

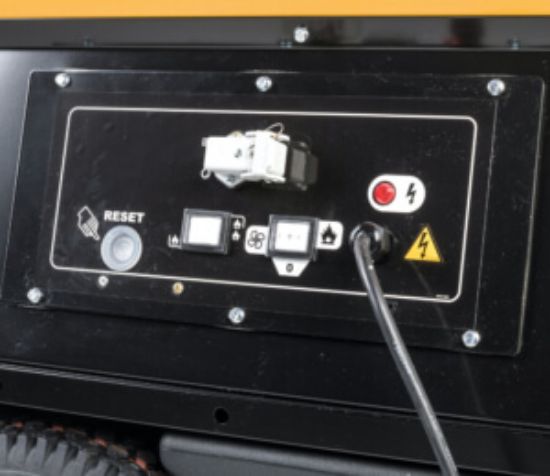

Socket for remote thermostat
High-efficiency heat exchanger
Stainless steel combustion chamber

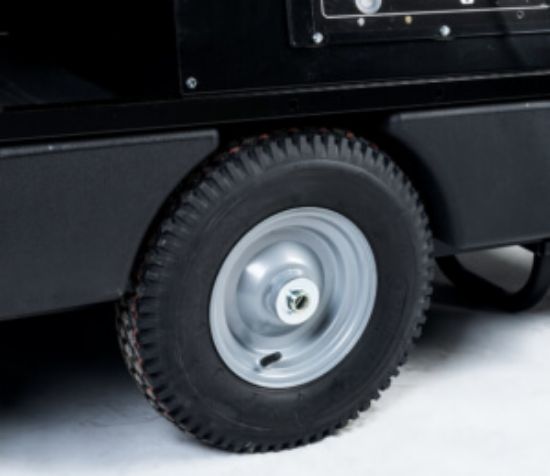

Trolley included
Snorkel for non-drip fuel tank

Suitable for

Agriculture
Automotive
Buildings and commercial spaces
Construction
Emergency services
Events, festivals and temporary structures
General industry and production
Military and aerospace
Rental companies

Products specifications

Attribute name	Attribute value
System unit
Heating power (kW)	110/80
Heating power(Btu/h)	375,000/237,000
Heating power(kcal/h)	94,600/68,800
Fan type	Plug fan
Total air pressure(pa)	500
Ductability(m)	50
Air flow (m³/h)	6,200
Motor power fan(W/rpm)	750/1,400
Flex tube(cm)	2 tubes Ø31cm or 1 tube Ø41cm
Maximum air temperature(°C)	95
Summer ventilation	Yes
Remote thermostat	Analogue or digital
Flue tube (mm)	150
Protection class	IP44
Tank capacity(l)	150
Fuel consumption(l/h)	10.2 high mode/7.7 low mode
Rated current(A)	6.8
Power supply(V/Hz)	220-240/1ph/50
Box size (l x w x h)(mm)	1670 x 710 x 1670
Net/gross weight(kg)	200/220
Product size (l x w x h)(mm)	2086 x 717 x 1233

The professionals choice

Master® is the leader in portable kerosene heaters, pushing the envelope of design and engineering to bring forth the next steps in heating technology industry professionals trust all over the world.
