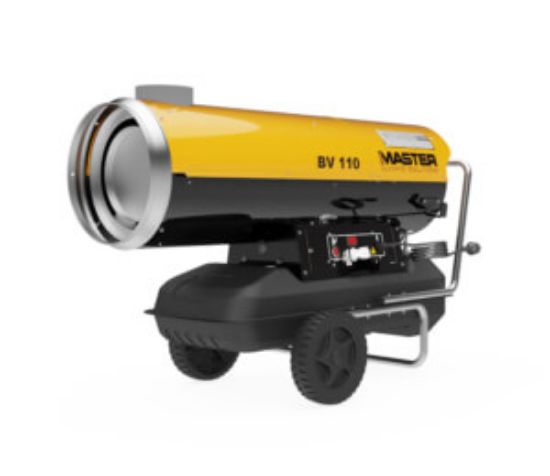

BV 110 – indirect oil fired air heaters

Indirect oil fired air heaters – high pressure

SKU: BV 110

Enquire Now Brochure not available

Overview

Master indirect oil heaters are highly efficient and generate 100% clean, dry and fume-free warm air. They are ideal for places with limited ventilation like shops, event tents, food preparation areas or exhibition halls. They can be used with flex hoses to distribute the warm air.

Key features

Clean hot air

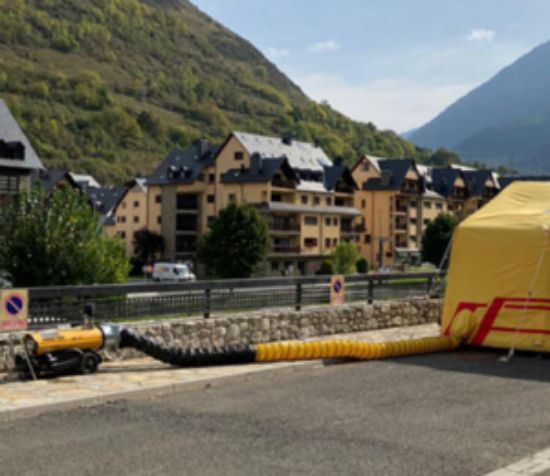

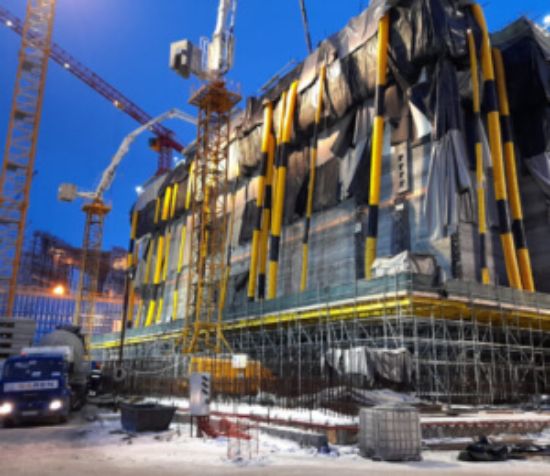

Optional connection to a flexible tube
Flue gas exhaust
Heat exchanger
Overheat thermostat
Post-ventilation
Thermally protected motor
Three oil filters: oil pump filter, suction filter and inlet filter
External suction filter with transparent glass cup
Electronic flame control with photocell
Stainless steel combustion chamber
Oil tank with level indicator
Trolley included
High quality brand fuel pump
Fuel pump with access for easy maintenance
Snorkel – breather for non-drip fuel tank

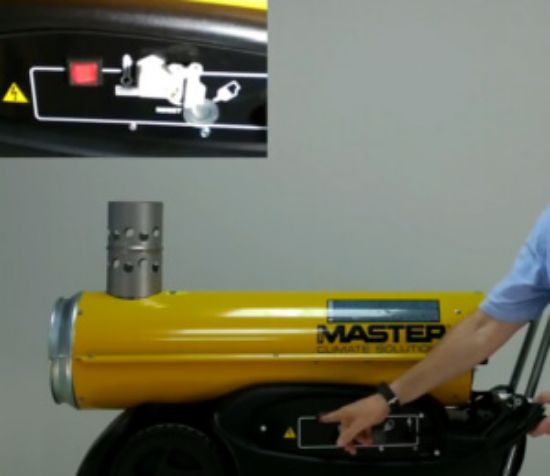

Diagnostic LED

Suitable for

Agriculture
Automotive
Buildings and commercial spaces
Construction
Emergency services

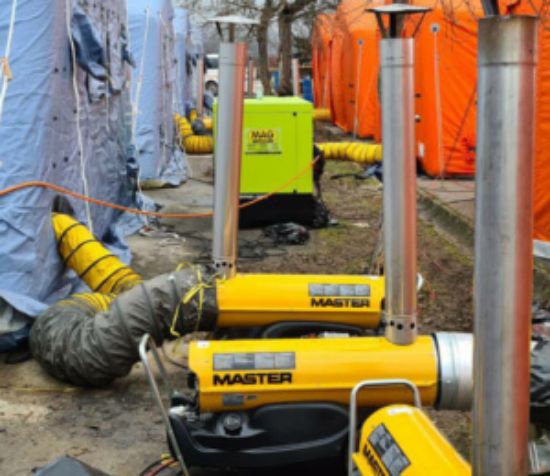

Events, festivals and temporary structures
General industry and production

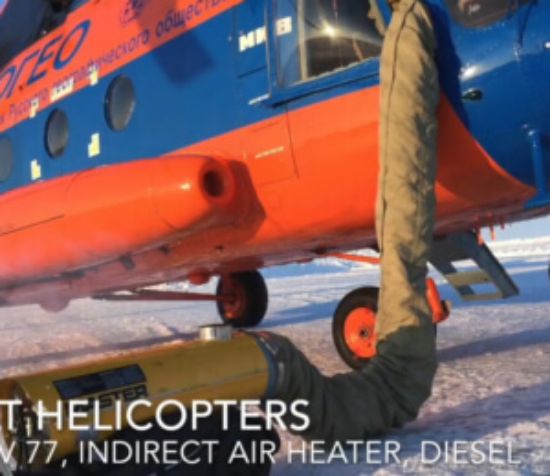

Military and aerospace
Rental companies

Products specifications

Attribute name	Attribute value
System unit
Heating power (kW)	34
Heating power(Btu/h)	116,000
Heating power(kcal/h)	29,200
Air flow (m³/h)	1,800
Fuel autonomy(h)	21
Thermostat control	Analogue or digital
Fuel consumption(l/h)	3.2
Power supply(V/Hz)	220-240/1ph/50
Electric power (kW)	0.8
Rated current(A)	3.5
Tank capacity(l)	65
Protection class	IP44
Flue tube(Ømm)	150
Box size (l x w x h)(mm)	1200 x 650 x 1000
Net/gross weight(kg)	61/76
Pallet(pcs)	1
Dual voltage	No
Product size (l x w x h)(mm)	1235 x 575 x 1000
Flex tube(Øcm)	34

The professionals choice

Master® is the leader in portable kerosene heaters, pushing the envelope of design and engineering to bring forth the next steps in heating technology industry professionals trust all over the world.
