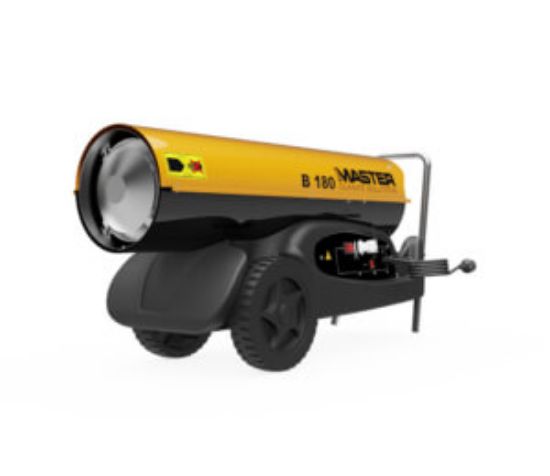

B 180 direct oil fired heaters

Direct oil fired air heaters – high pressure
SKU: B 180
Enquire Now Brochure not available

Overview

Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are best for open or well ventilated areas like factories, warehouses or construction sites. Master direct heaters are known as very efficient and robust as well as safe and easy in use.

Key features

  • Overheat thermostat
  • Post ventilation
  • Thermally protected motor
  • Transparent external suction filter
  • Three oil filters – oil pump filter, suction filter and inlet filter
  • Electronic flame control with photocell
  • Stainless steel combustion chamber
  • Oil tank with level indicator
  • Trolley included
  • Snorkel
  • Easy maintenance with external pump
  • Diagnostic LED



Suitable for

  • Agriculture
  • Automotive
  • Buildings and commercial spaces
  • Construction
  • General industry and production
  • Military and aerospace
  • Rental companies

Products specifications

Attribute nameAttribute value
System unit
Heating power (kW)48
Heating power(Btu/h)165,000
Heating power(kcal/h)41,200
Air flow (m³/h)1,550
Fuel autonomy(h)8
Remote thermostatAnalogue or digital
Fuel consumption(l/h)4.5
Power supply(V/Hz)220-240/1ph/50
Electric power (kW)0.3
Rated current(A)1.5
Protection classIP44
Tank capacity(l)36
Box size (l x w x h)(mm)1200 x 400 x 530
Net/gross weight(kg)30/34
Pallet(pcs)8
Product size (l x w x h)(mm)1165 x 380 x 550
