Sorry - this product is no longer available

AC-M5 MKII – container cooler

SKU: AC-M5 MKII
Enquire Now Brochure not available

Overview

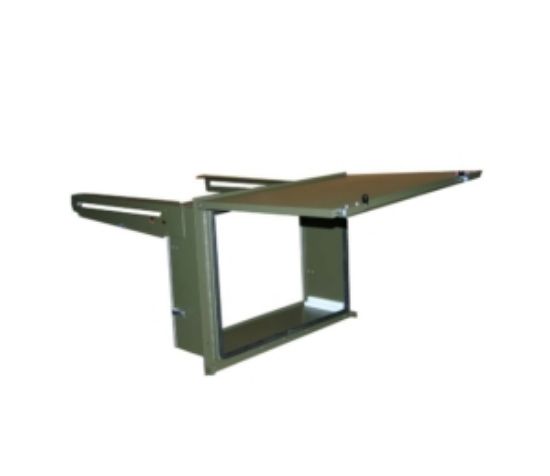

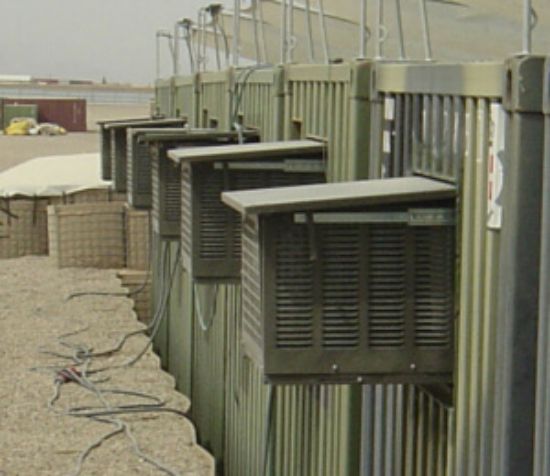

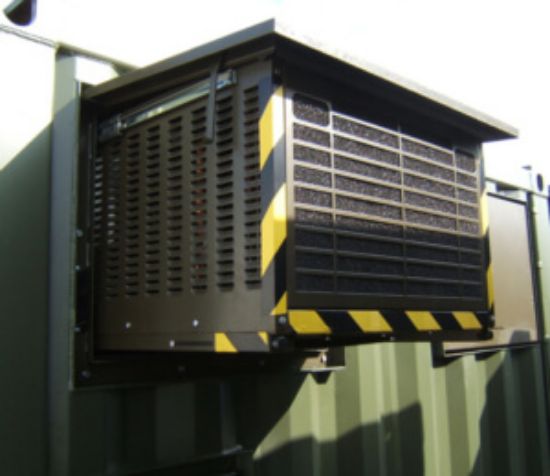

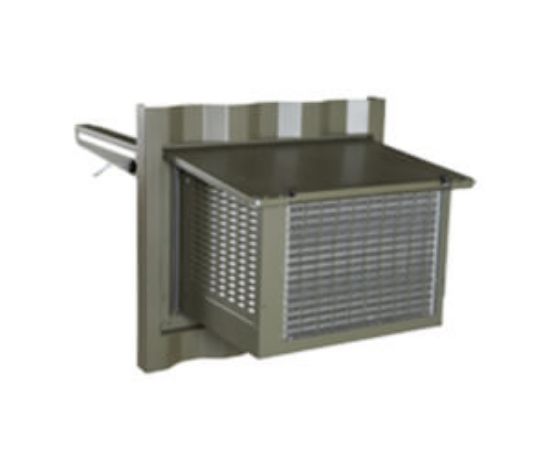

The AC-M5 MKII is designed for window mounting in ISO containers. Together with the trap door system, the air conditioner is mounted in the container wall. It is designed to store within the confinement of the ISO corners during transportation or storage. The AC-M5 MKII is sliding in its trap door system and is deployed from the container for operation. Once deployed, the unit is locked from inside the container when operating.

The unit has no fresh-air intake and is therefore fully CBRN/COLPRO compliant.

AC-M5 MKII can be delivered in either 50Hz or 60Hz versions.

Key features

  • Manufactured from hot dip galvanized and powder coated steel sheet
  • Top finish painting is standard NATO green, RAL 6014
  • Air-tight boundary to ambient environment
  • Full CBRN/COLPRO compliance (no fresh air intake)
  • Delivers cooling in ambient temperatures up to +60°C
  • Scroll compressor for high degree of reliability and low noise
  • Two-speed selector for the internal fan
  • “VENT-only” option for ventilation without cooling
  • Stores inside the container during transportation
  • Chosen as the NATO standard, conforming to all NATO requirements and norms
  • All units have unique NATO stock numbers (NSN)

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Registered NSN numberyes
Operating temperature range, cooling(°C)-20 – +60
Operating temperature range, heating (°C)-32 – +20
Air flow (m³/h)900
Sound level, fan-speed 1 & 2 @ 1m(dB(A))49/63
Protection classIP55
RefrigerantR134a/1.4
GWP (Global Warming Potential)1300
Nominal cooling capacity(KW)4.7/6,000
Heating capacity (optional)(kW)2
Power supply(V/Hz)230/1ph/50
Max. running current, cooling/heating(A)9.8/9.3
Locked rotor amperage (LRA)(A)47
Max. power consumption cooling/heating(W)2,300
Product size( l x w x h)(mm)482 x 755 x 666
Weight(kg)79
